Coping is a precise process where steel beams are expertly cut and slotted to interlock tightly, especially when beams need to intersect at irregular angles. We have a specialized coping machine—the Peddibot—that cuts beams quickly and efficiently.

The Peddibot 1200 uses a robotic arm to control the plasma torch for specialized movements which eliminates the need for grinding structural shapes. The robotic arm offers dynamic performance and stability during production and can etch part numbers or other designs on the surface of your parts.

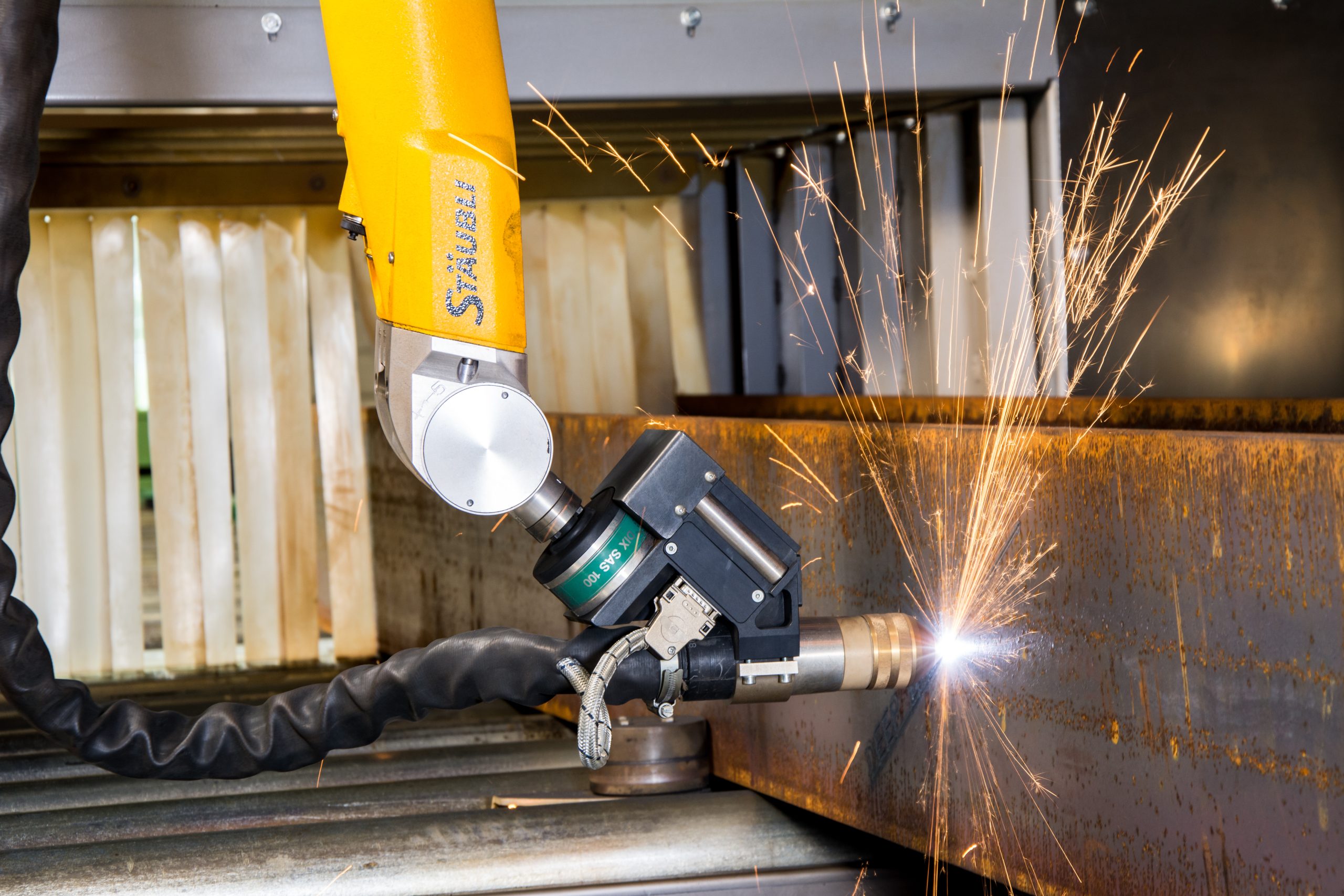

Robot arm pointing at a right angle of a beam. The beam is on top of a conveyor belt.
Peddibot-1200 Key Features
  • Fast Cutting Speeds: Uses 130 up to 440 amp plasma units designed to combine faster cutting speeds, rapid cycling, quick changeovers, and high reliability.
  • State-of-the-art scanning system: The 3-D triangulation scanning system detects displacement and distortion during the production process.
  • 360-degree cutting: Capable of cutting structural steel with 360 degrees around the material with industry-leading precision.

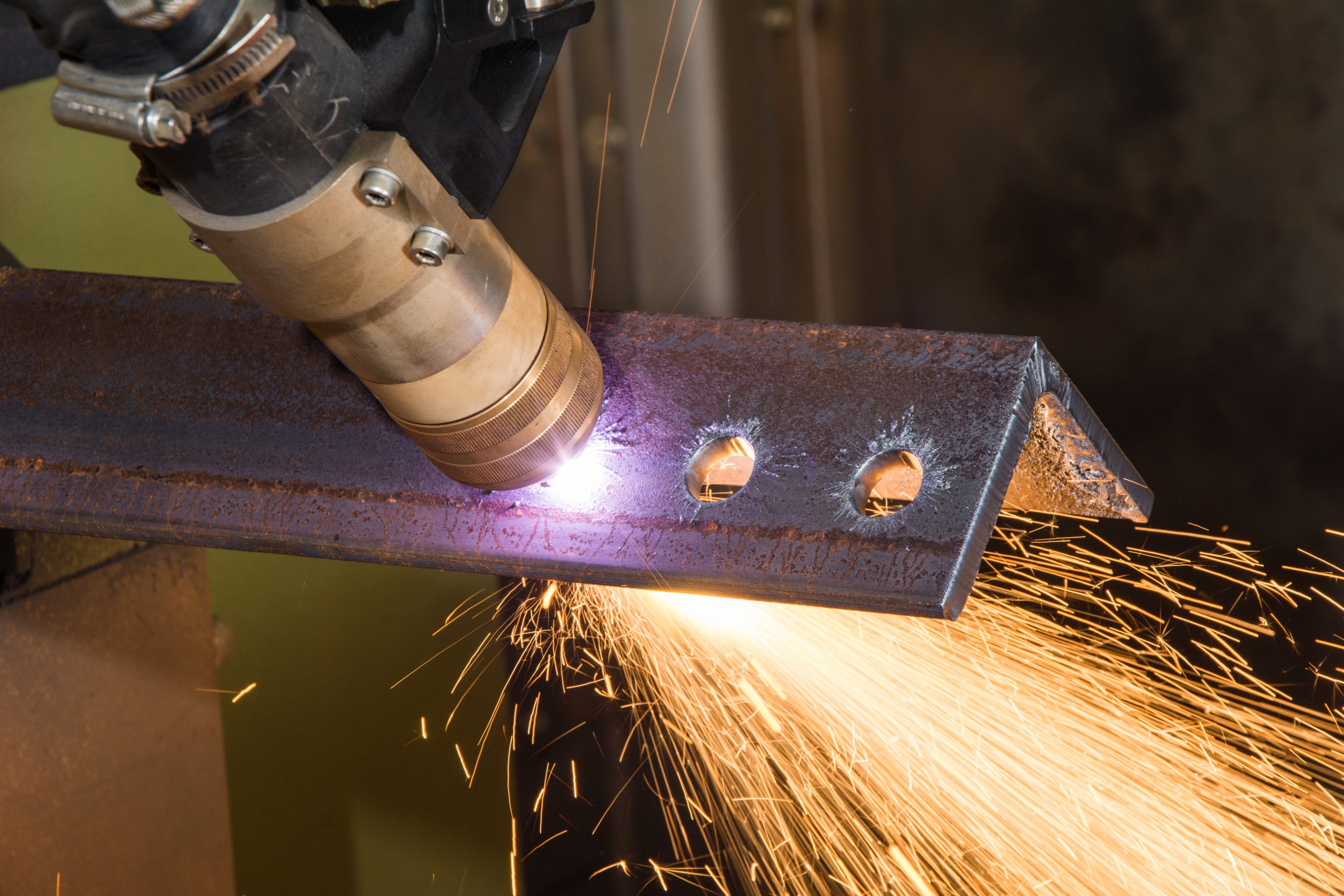

Gold laser point cutting at a 90 degree angle from the left cutting a hole through a metal angle
  • Dual Purpose: Combines the layout and production of copes in one machine.
  • 6-Axis Capability: Highest level of accuracy is achieved throughout production due to the robot arm’s patented reduction gear system.
  • Near Flange Cutting: The PeddiBot uses a special cutting method to adjust for torch height and tilt it backwards for rat holes, eliminating the need for manual grinding

Whether you’re building bridges, warehouse buildings, or for general construction the Peddibot 1200 lets you utilize man hours with more strenuous activities while leaving the machine to provide a near complete part to maximize your production and profits.

Cutting Capacity

  • Cuts up to 3” thick & 350 lbs per ft

  • Beams up to 40”

  • Square Tubes up to 14”

  • Rectangle Tubes up to 12” x 36”

  • Lengths up to 60’
